[UPDATE 02 March 2021]
In this guide, I’ll explain to you the easiest way to track Core Web Vitals (if you don’t know what Core Web Vitas are, click here to read my italian article) i.e. metrics that are the new ranking factor in SEO for Google.
This post is inspired by:
- the web.dev official article that explains several topics about this issue;
- the GitHub link where there’s a script already made to manage the Web Vitals APIs with several tools including Google Tag Manager.
Actually, I was inspired by several sources, but Philip Walton’s post is the most authoritative source for me.
Metrics to focus on are:
- Largest Contentful Paint (LCP)
- First Input Delay (FID)
- Cumulative Layout Shift (CLS)
Are you ready to take advantage of the three Core Web Vitals metrics and create your own Real User Monitoring?
Let’s go!
Thanks to Simo Ahava
For me is an honor to inspired amazing people like Simo Ahava. Indeed, he has created a Core Web Vitals custom template in GTM. Please read his article also: https://www.simoahava.com/analytics/track-core-web-vitals-in-ga4-with-google-tag-manager/

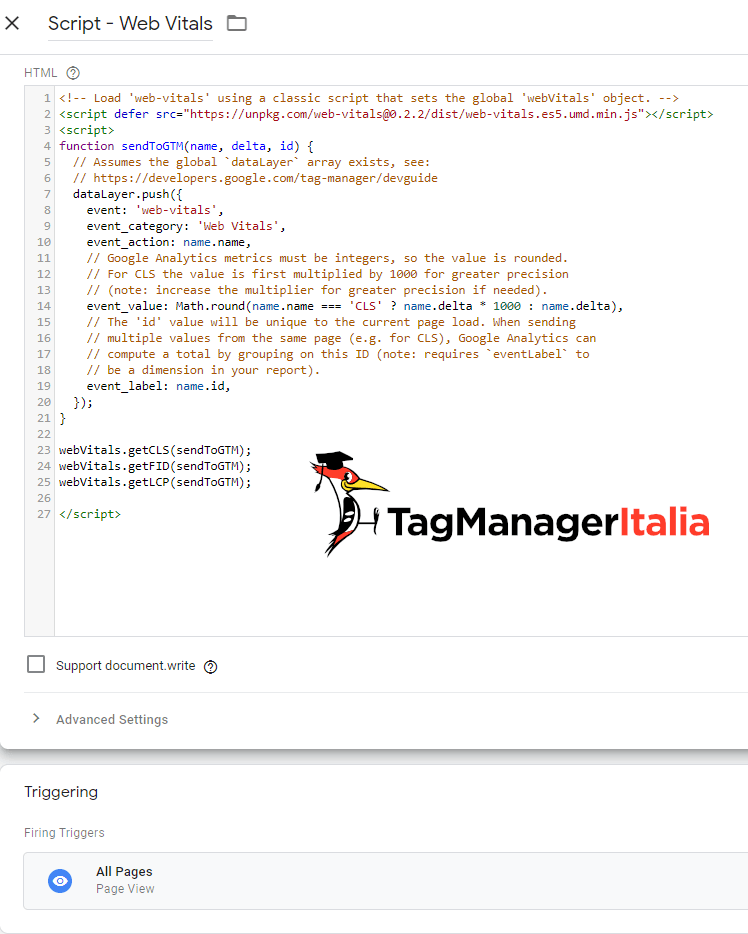

STEP 1 – Create Custom HTML Tag with Web Vitals APIs
You are able to create the Custom HTML Tag just by copying and pasting the script below (integrated by some small changes with the help of the help of Simen Hansen) in 10 seconds.
- Tag > New > Tag Configuration > Custom HTML Tag.
- Copy and paste this script:
<!-- Load 'web-vitals' using a classic script that sets the global 'webVitals' object. --> <script src="https://unpkg.com/web-vitals@1.1.0/dist/web-vitals.umd.js"></script> <script> function sendToGTM(name, delta, id) { // Assumes the global `dataLayer` array exists, see: // https://developers.google.com/tag-manager/devguide dataLayer.push({ event: 'web-vitals', event_category: 'Web Vitals', event_action: name.name, // Google Analytics metrics must be integers, so the value is rounded. // For CLS the value is first multiplied by 1000 for greater precision // (note: increase the multiplier for greater precision if needed). event_value: Math.round(name.name === 'CLS' ? name.delta * 1000 : name.delta), // The 'id' value will be unique to the current page load. When sending // multiple values from the same page (e.g. for CLS), Google Analytics can // compute a total by grouping on this ID (note: requires `eventLabel` to // be a dimension in your report). event_label: name.id, }); } webVitals.getCLS(sendToGTM); webVitals.getFID(sendToGTM); webVitals.getLCP(sendToGTM);
</script>
- Triggering > select “All Pages” Trigger.
- Rename Tag as “Script – Web Vitals”.
- Save and publish.
Some considerations:
- The green parts are comments (you can also delete them)
- The dataLayer object must be initialized. No problem: it’s already like that 🙂
- Since Google Analytics likes integers there’s rounding in the event_value parameter (Math.round), and in the case of the CLS metric a multiple of 1000 is added.
- The event_label parameter contains a unique id of the page
- There are three metrics to add: Largest Contentful Paint (LCP), First Input Delay (FID), Cumulative Layout Shift (CLS)
So this script fires three events called web-vitals in GTM. Let’s intercept metrics.

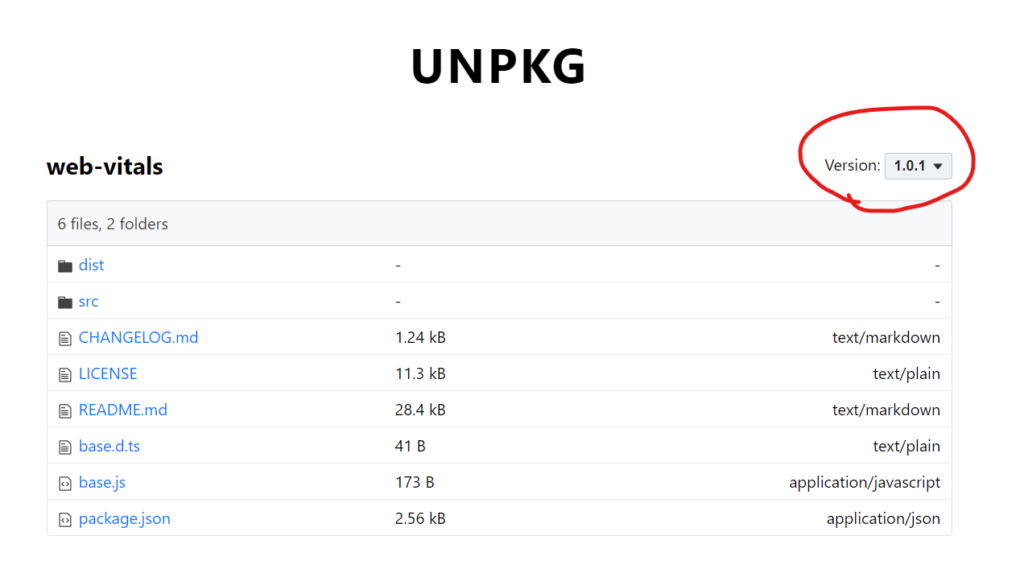

[WARNING]
The library https://unpkg.com/web-vitals@1.1.0/dist/web-vitals.umd.js the current version (03/02/2021) is 1.1.0 be careful and update it if there will be a new release.
You can find it here: https://unpkg.com/browse/web-vitals/
STEP 2 – Create Trigger for WEB VITALS Custom Event
- Triggers > New > Trigger Configuration.
- Trigger Type: Custom Event.
- Event name: web-vitals.
- Rename Trigger: “Web Vitals”.
- Save.

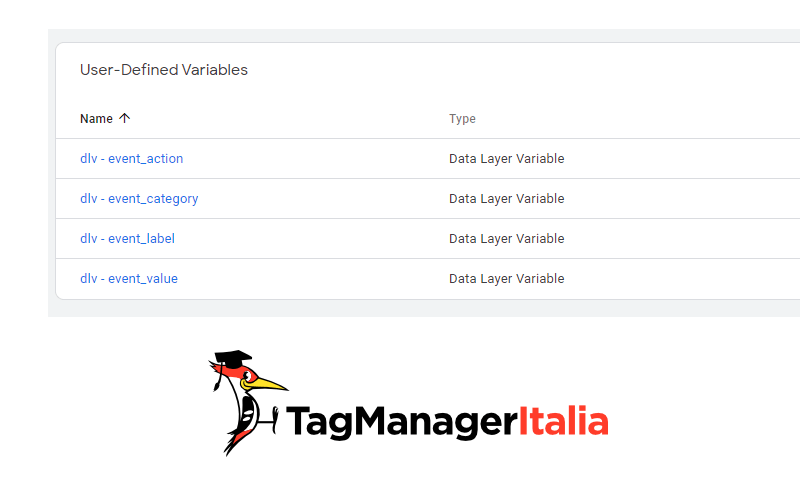

STEP 3 – Create Data Layer Variables
You have to collect values that are inside dataLayer to send them to Google Analytics.
These values are:
- event_category
- event_action
- event_value
- event_label
You just have to do it for all four values.

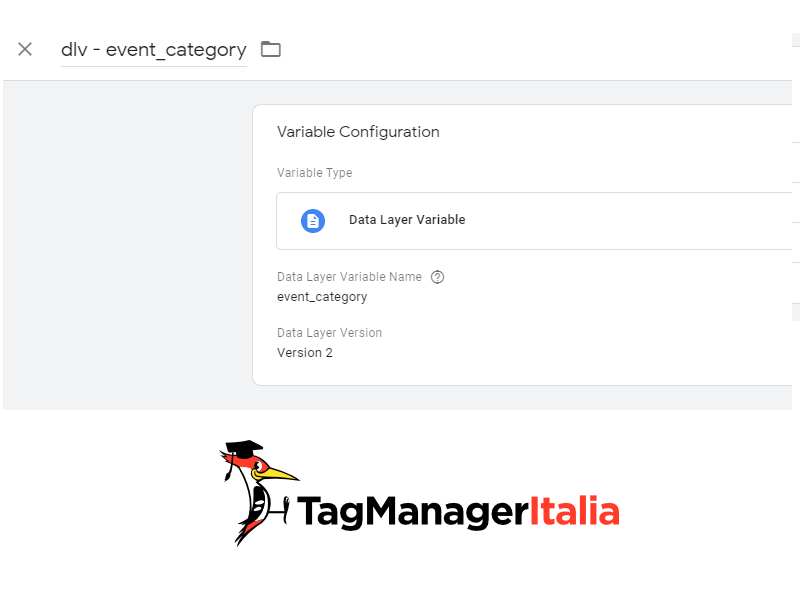

Variables > New > Variable Configuration > Data Layer Variable
- Name: dlv – event_category
- Data Layer Variable Name: event_category
- Data Layer Version: Version 2
Do the same for the rest of Variables by changing their name and value:
Variables > New > Variable Configuration > Data Layer Variable
- Name: dlv – event_action
- Data Layer Variable Name: event_action
- Data Layer Version: Version 2
Variables > New > Variable Configuration > Data Layer Variable
- Name: dlv – event_value
- Data Layer Variable Name: event_value
- Data Layer Version: Version 2
Variables > New > Variable Configuration > Data Layer Variable
- Name: dlv – event_label
- Data Layer Variable Name: event_label
- Data Layer Version: Version 2
Great! You just have to send values to Google Analytics (but if you wish, you could send these metrics to any other tool).

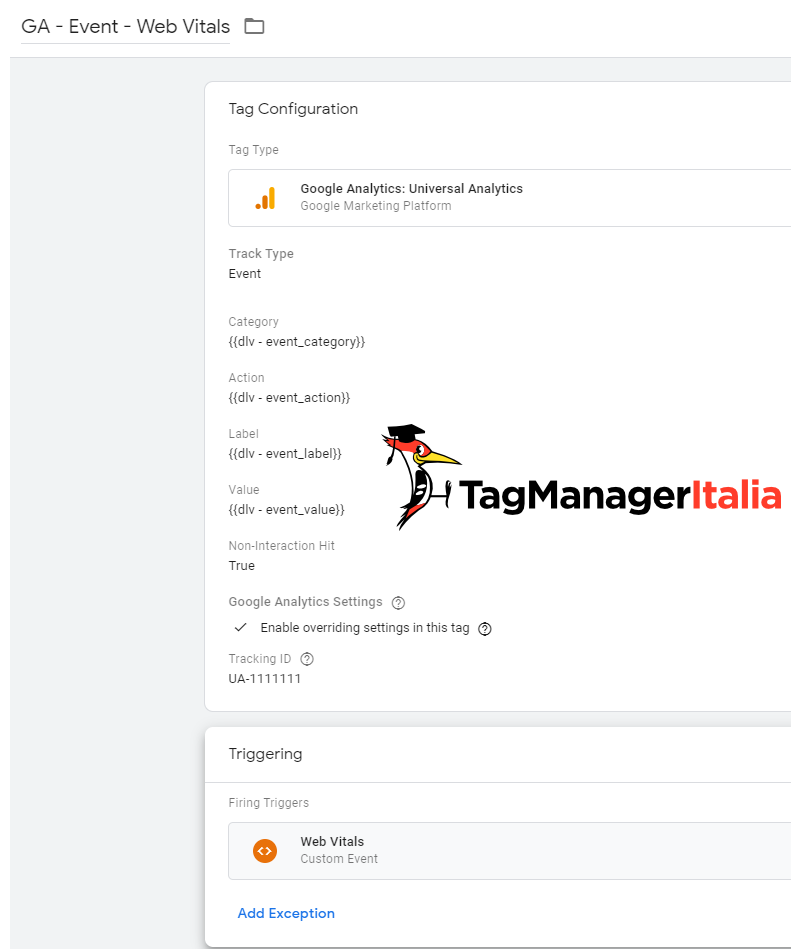

STEP 3 – Create and configure Google Analytics Tag for web vitals
- Tag > New.
- Tag Type: Universal Analytics.
- Track Type: Event.
- Category: {{dlv – event_category}}
- Action: {{dlv – event_action}}
- Label: {{dlv – event_label}}
- Value: {{dlv – event_value}}
- Non-Interaction Hit: True
Select Google Analytics Variable on Google Analytics Settings Variable and Enable overriding settings. Insert GA Costant or GA tracking code as Tracking ID.
- Firing Triggers:“Web Vitals”.
- Rename Tag: “GA – Event – Web Vitals”.
- Save.

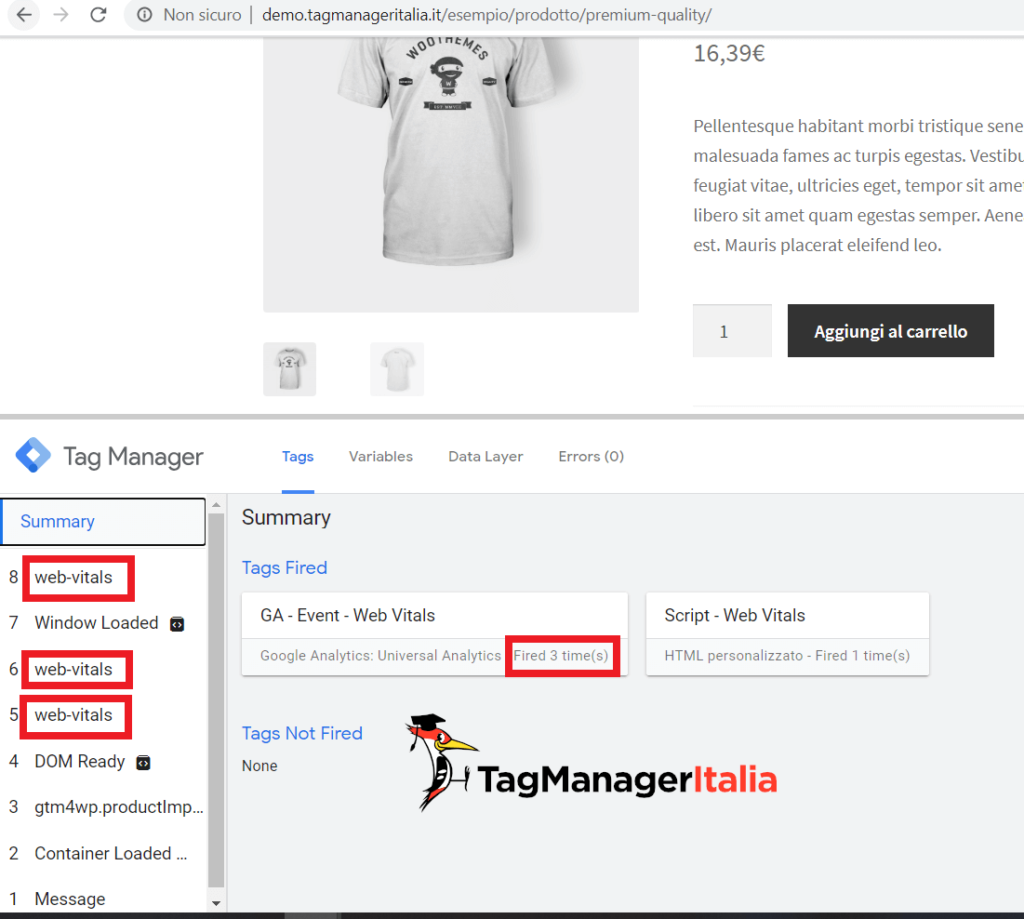

STEP 5 – Check the correct tag functioning
Before publishing any changes, check the correct tag functioning by activating the Preview and Debug Mode.
Go to your site and refresh the page. You should see a box at the bottom of your current page showing “web-vitals” event triggered three times. Click on Tags Fired On This Event, you’ll find newly created Tag.
This Tag will fire three time, one for each metric. Keep in mind that the event corresponding to the CLS metric will take a little longer to appear in the box.

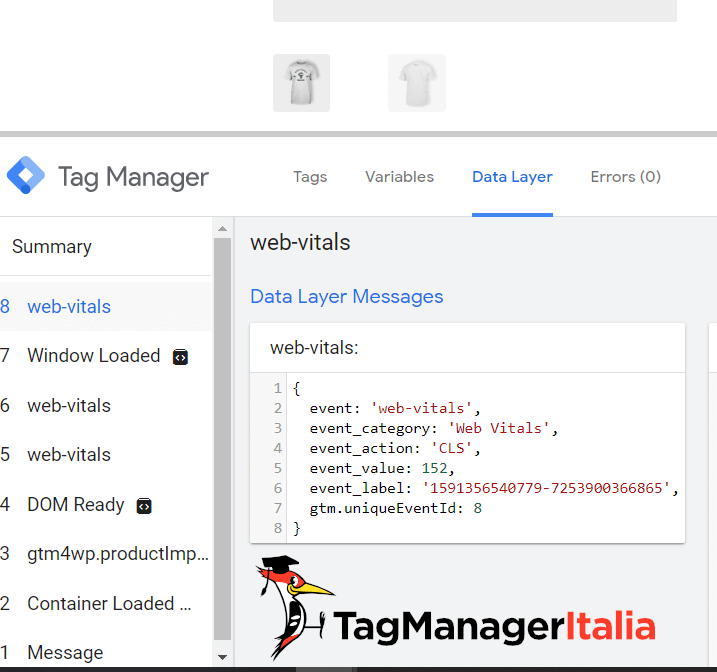

Therefore, on each event there will be a dataLayer push which will have the parameters of the three metrics:
- Largest Contentful Paint (LCP)
- First Input Delay (FID)
- Cumulative Layout Shift (CLS)

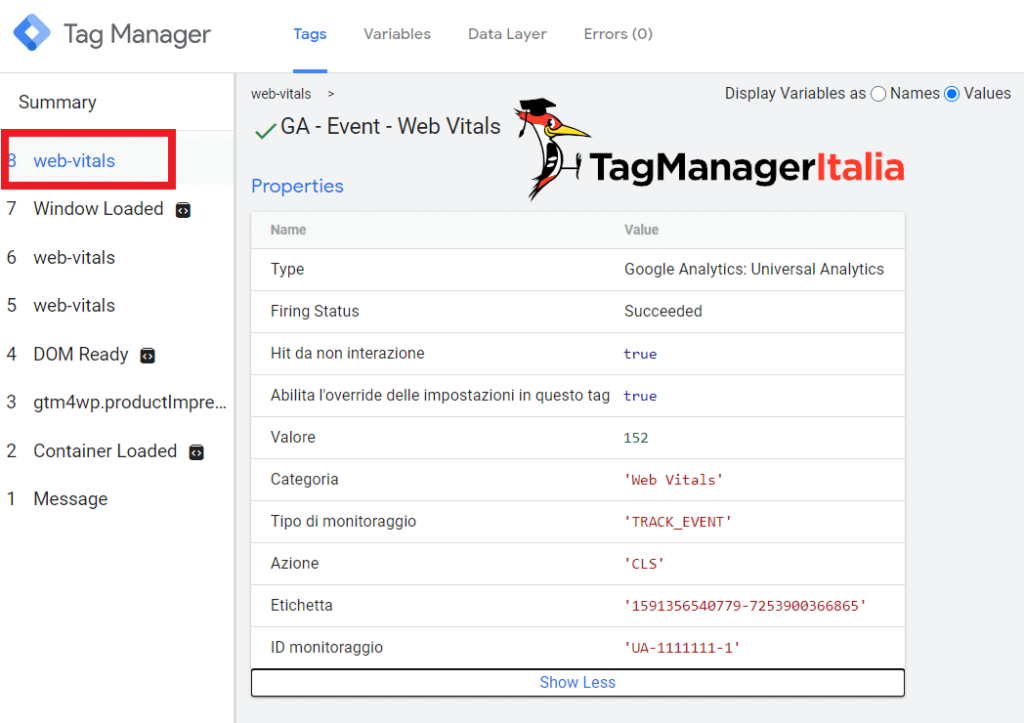

And these following Tags in Google Analytics.
STEP 6 – Publish changes
If the Tags function correctly, then you can publish the changes.
Next step: create your R.U.M.
Now that data are sent to Google Analytics, you should export them and create reports and your Real User Monitoring.
As explained in web.dev official article
“For each of the above metrics, to ensure you’re hitting the recommended target for most of your users, a good threshold to measure is the 75th percentile of page loads, segmented across mobile and desktop devices.”
You have to wait for data (for a few days) and then you can export them by using tools such as Google Sheet, BigQuery, and Data Studio.
Would you like to read a guide explaining how to do it? Let me know in the comments!
Here is an example:
See you in the next article and… Buon Tag 😉
